Destaques

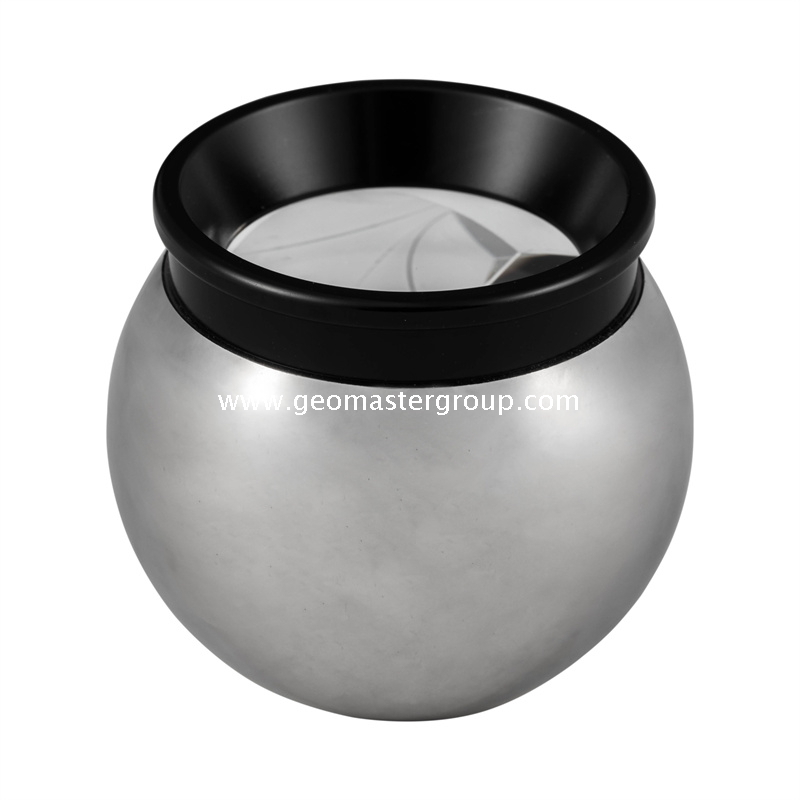

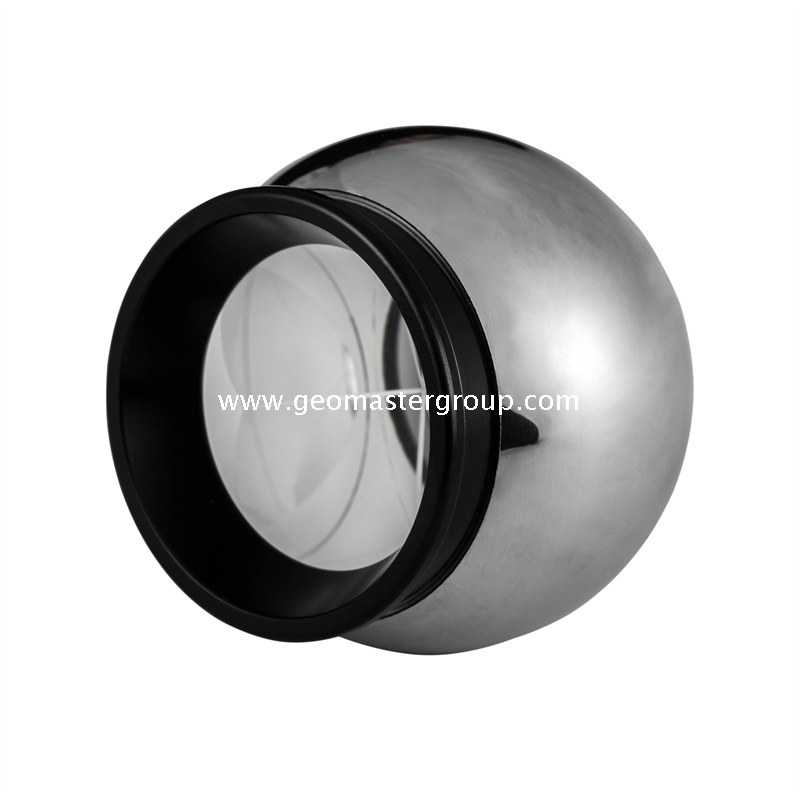

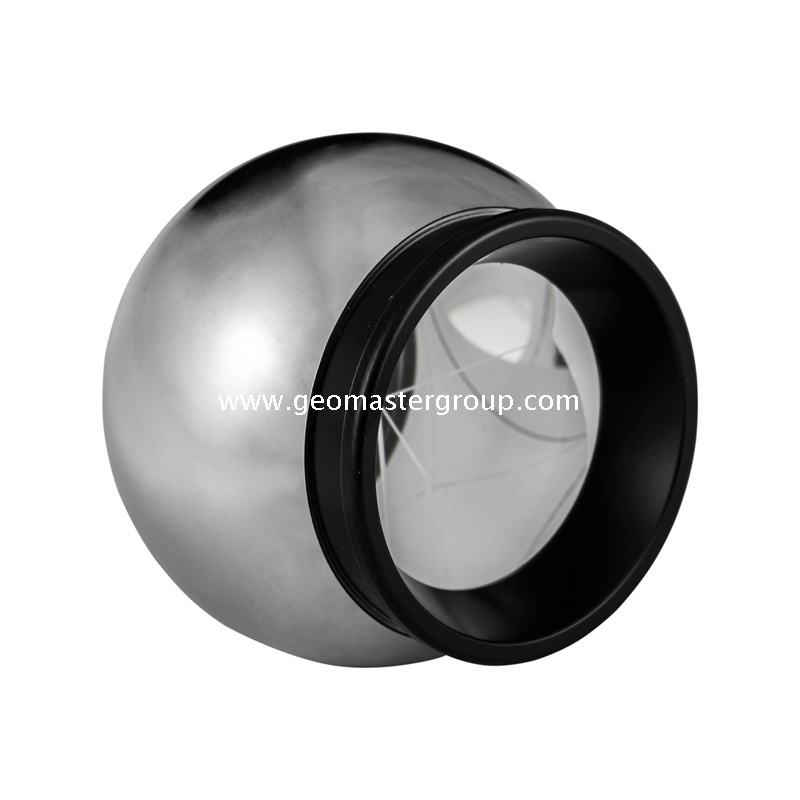

Modelo: SMR381-254/3RNG
1. RE montado sepéricoFLECTION (Smr)
2. Metal Diâmetro da esfera: 38,1mm (1,5 polegada)
3. Screoundness: ±0.002~ 0,005mm
4.Abertura do prisma: 25,40mm (1 polegada)
5.Silver-prisma revestido 3 '& Anel de quedas pretas (Rng)
6.PRISM Constant: -16,90mm (abs.);+17,5 mm (original)
7.Óptica Centrando: ±0.11 ~ 0,12 mm
8.Compatível com todos os presentes Sistemas de rastreador a laser
| Quantidade: | |
|---|---|
SMR381-254/3RNG
Geomaster
9031809090
Especificações e recursos do modelo:
SMR381-254/3RNG 1. PRISMO REFLEFFICIONAL (prisma do tubo de canto)
1) Precisão (desvio do feixe): 3
' 2
) Mini prisma de prisma:
25.4mm ( 1 polegada) 3) OPTIVEs
± 0. 11 ~ 0.12mm 4 )
5) Vidro óptico K9-BK7
6) Coloque
7) Faixa de medição: > 50m
2.Metal Sphere (Prism Holder)
1)Sphere Diameter: 38.1mm (1.5inch)
2)Roundness Error (Sphericity): ± 0.002~0.005 mm
3)Hardened Surface,440C Stainless Steel
4)Black large-format Protective Ring ( Flared wide-angled Ring ),non-removable
5) NW: 215-225 g (the w hole set )
3. Customization services are available
1)Prism Reflector Aperture: 38.1mm(1.5 ' ), 25.4mm(1 ' ), 12.7mm(0.5 ' )
2)Prism Accuracy: 5' , 3 ' , 2 '
3)Coating:non-coated,Copper-coated ( Cu ),Silver-coated (Ag ), A nti-reflex coating ( AR ), Diâmetro da esfera de metal revestida com alumínio ( AL )
4): Dependendo da abertura do refletor de prisma
5) Cor do anel de queda: preto, vermelho, azul
Nota: Qualquer atualização estaria sujeita a alterações sem aviso prévio.
