Destaques

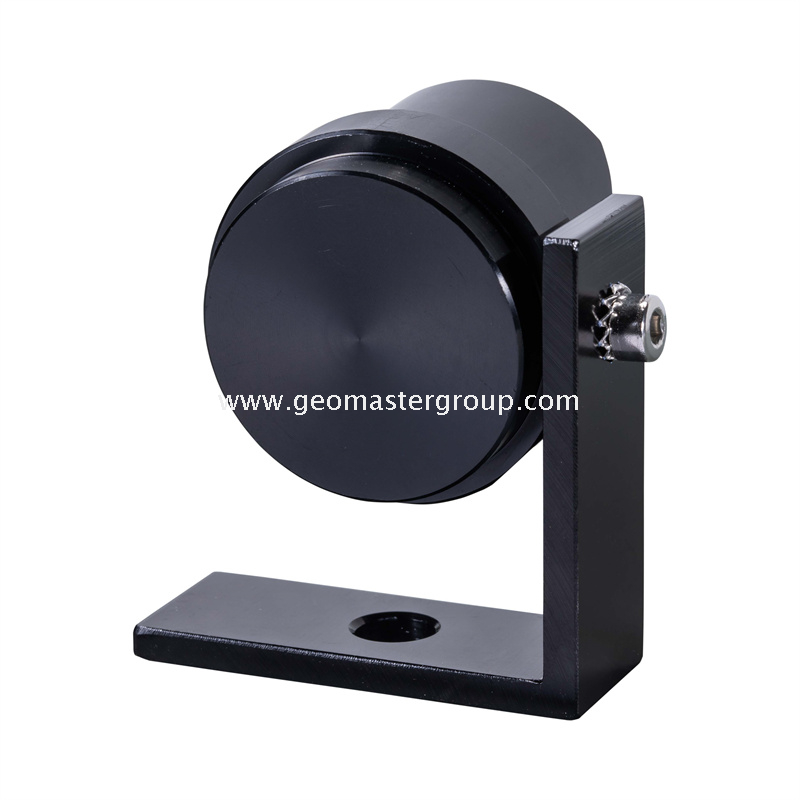

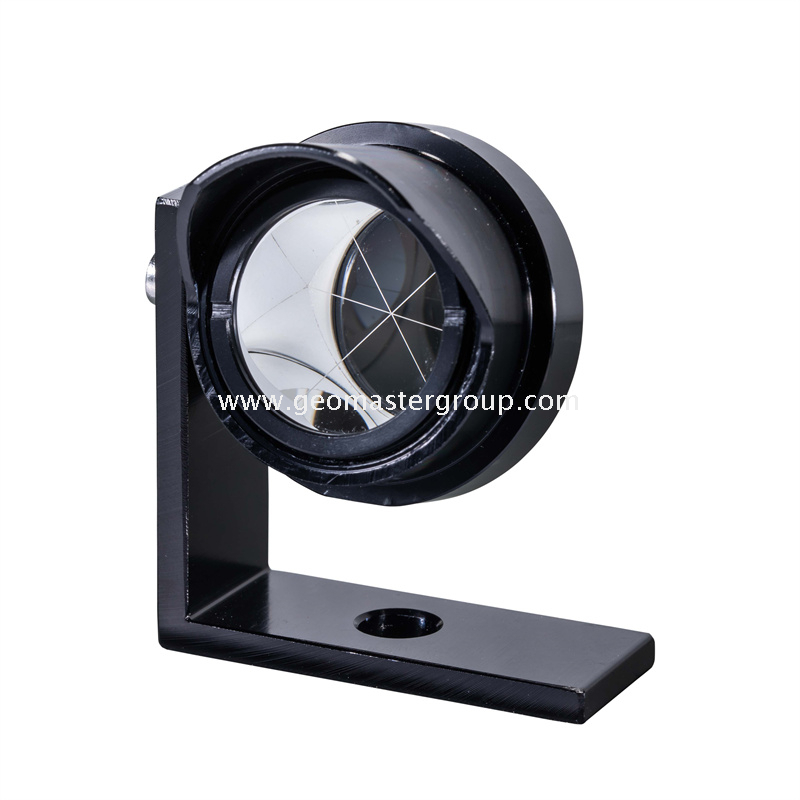

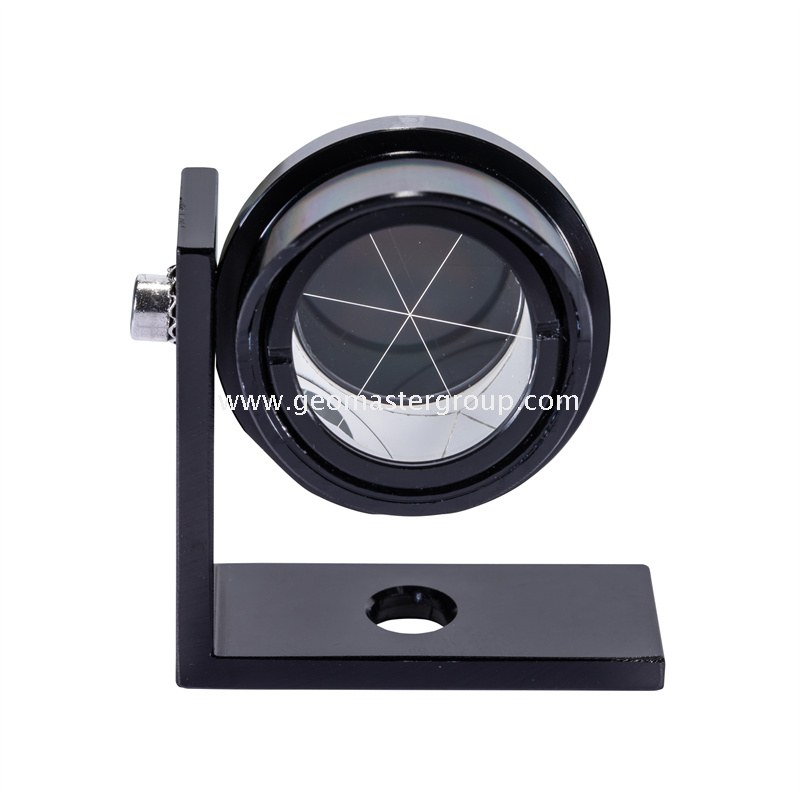

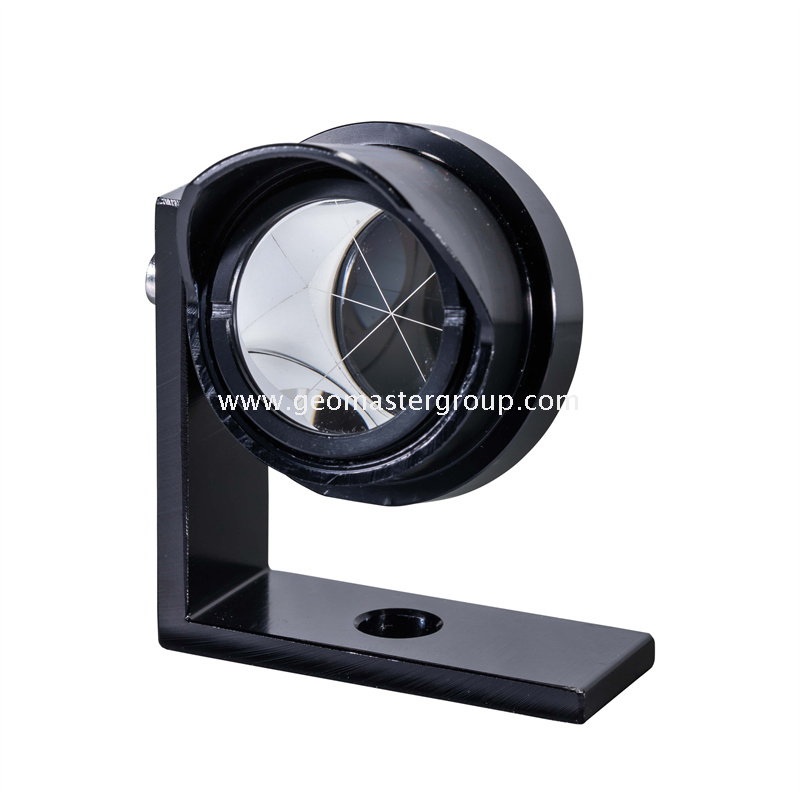

Modelo: GMP104C2-254AG/5-W
1. Prisma de abrigo de chuva (GMP104C)
2.geomestro L-bar mini prisma w. Cobertura de chuva (C)
3.PRISM APERTURA: 25.4mm
4.Todo metal, revestido de prata (AG), à prova d'água (W)
5. PRISMA DE PRISMA: ≦5 ' (Relatório W.Zygo)
6.
| Quantidade: | |
|---|---|
GMP104C2-254AG/5-W
Geomaster
9015900090
Specifications
Model: GMP104C2 -254Ag /5-W
1.Mini Circular Prism: Mini -254
1)S ilver-coated, water-proof
2)Mini Prism Aperture: 25.4mm (Dia) × 19mm (H)
3)Prism Accuracy: ≦ 5' ,enclosed with a real-time Testing Report generated by Zygo )
4)Prism Constant: +17.5mm
5)Material: precision-ground Optical Glass K9
6)Clear Aperture: ≧95%
7)Prism Reflectivity: 95%
8)Prism Surface Finish: 60~40
9) Central Height: 39mm (as shown)
10)Measuring Range: up to 1000m (under normal weather conditions)
11)Sealed in a tilting metal Canister with a metal Rain Cover (Weather Hood), weather-resistant
2.Suporte de inclinação da barra L : LTH-254A
1) Material: Feito de alumínio, dimensões de 2
enegrecimento por alumínio : 50 mm × 50mm × 20mm (largura) × 4mm (espessura)
3) com 1 orifício de fixação 1, 1 × 6mm (dia)
4) Montagem em horizontal ou horizontal)
MOLEGEM1SOTELTATET1SOTET (1 × 6mm (gm) 4ming e 1,2) MOLHOTETS 10-
FIRFATIONS ( 1 × 6mm ( GM ) Montagem de 4 × 4 de
× 4) Trimble Mini Prism
2.Ideal para monitoramento e levantamento de curto alcance em locais difíceis , como pontes, túneis, construções ferroviárias e de metrô, etc.
3. Mini prisma com mapa de precisão hermeticamente selado em caliteiro de metal, à prova de jubo S e à prova de água
e montado em um suporte de barra L de metal
, adequada nas condições mais adversas
4. Equipadas com abrigo de chuva
( tampa de chuva , MMM: 5 mm de ,comprimento
) 38.15 25.4. (1 polegada) , 12.7mm ( 0.5polegada)
3) revestimento de prisma: não revestido, revestido de cobre ( Cu ), revestido de prata (AG ), um revestimento NTI-reflexo ( AR ), revestido de alumínio ( Al )
4) Cores de barra L: escurecimento anodizado ou branco anodizado
Nota: Quaisquer atualizações estariam sujeitas a alterações sem aviso prévio.
