Português
 |
Destaques
Modelo: GHT112-121
1.Geomestro Prism Titular & Alvo (GHT112)
2.Prisma Deslocamento: 0mm
3.Todo preto e umll-metal Titular & Alvo
4.Target com fitas retrô altamente visíveis
5. Tamanho da Target: 160mm x 120mm
6.Comp. c. prisma circular original GPR1
7.Comp. c. original Pro Circular Prism GPR121
8.comp. c. PRISM PRISM PRISM GLS Series
| Quantidade: | |
|---|---|
GHT112-121
Geomaster
90159000
Specifications & Features

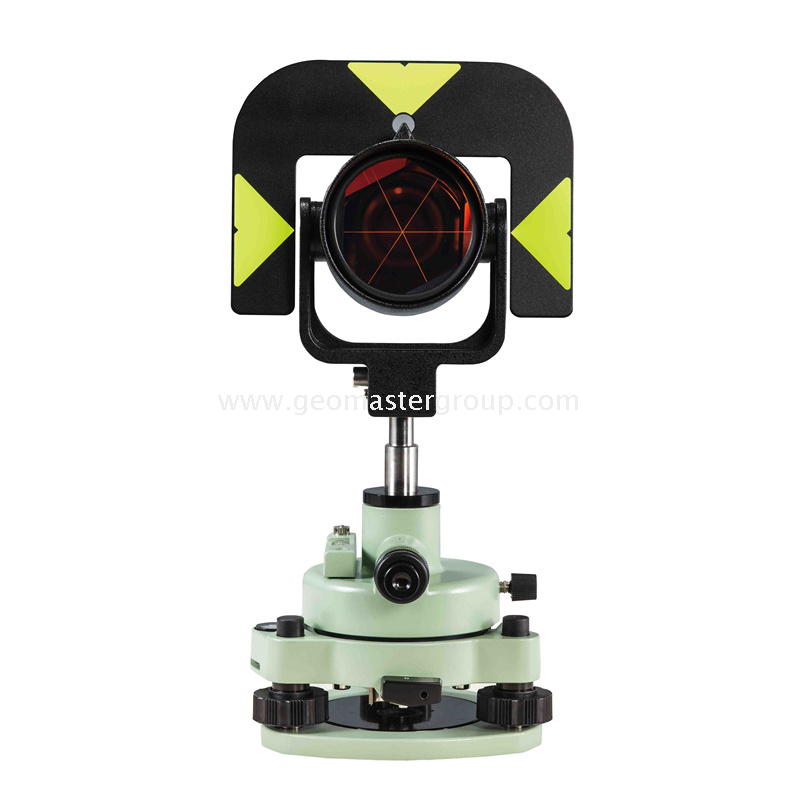

Model : GHT112 -121
1.Prism Offset
0mm, suitable for Swiss-style Circular Prisms,Surveying Prisms and Monitoring Prism Reflectors
2.Tilting Steel Prism Holder & Target
1)Made of cast Aluminum
2)Central Height (Height Offset): 86mm
3)Target Dimensions: 160mm x 120mm
4)With quick-release Press Button
5)Highly visible Retro Tapes on the both Sides of Target
3.Compatible with
1)all Geomaster Swiss-style snap-on Circular Prism Reflectors
2)all Geomaster Swiss-style Geo-bases and Geo-adapters
3)all Geomaster Swiss-style Surveying Poles (Prism Poles,GPS Poles,Laser Poles)
4)all Geomaster Swiss-style Fixed or Rotating Prism Carriers
5)all Swiss-style Surveying Instruments
4.NW: 390-400G (Excluindo o Prism Reflector; Holder: 335-340G; Target: 55-60G)
5. PACODENTE NO SACO DO PRISM DURÍVEL DURO DURO E CASE PAB-5 ou PAB-6
NOTA: Qualquer atualização estaria sujeita a alteração sem aviso prévio! (GPR113)
Surveying Instrument,Surveying Equipment,Surveying Accessories,Mobile Mapping System,Mobile Mapping Survey,LiDAR Survey,SLAM Mapping System,Remote Surveying,Geospatial,SLAM Survey,Geosystems, Reality Capture,
Virtual Reality (VR),Magnetic Fixed Carrier,Fixed Carrier,Magnetic Mount Base, Magnetic Base, Mounting Base,Magnetic Rail shoe,Mini Prism Pole,Prism Mount Adapter,Prism Pole Adapter,Prism Suction Holder,Scanner Sphere
Adapter,Scanner Target Adapter,Scanner Target Base,Survey Point Plug,Switch Magnetic Base,Tribrach Prism Mount,Prism Mounting Set,Mounting Set,Prism Rain Shelter,Prism Rain Hood, Prism Weather Hood,Prism Adapter,
Prism Carrier,Prism Tribrach,Drifting Base,Circular Prism Holder,Prism Holder & Target, prisma cheio de nitrogênio, prisma de nitrogênio, premier prismrtc360, rts673, rts773, rts873, sx10, sx12, slsu-s2020, x7, x9, tx6, tx8, rtc360, BLK360, GRT10, GRT144, GRT146, GZR2, GZR3, GZR103, GZS4, GDF111, GDF112, GDF322, GDF321, GPH1, GPH1P GPR112,GPR121,GRZ4,GRZ122,GRZ101(Bernsten, Brunson, Bosch, Dewalt, CST/Berger,David White,Faro, Geomax, GeoSLAM, Hilti,Johnson,Nikon, Pentax, PLS, Riegl, Rothbucher, Specto, SECO,Stabila,Stonex, Surphaser, Teledyne, Trimble, Z+F, Zeb, Zeiss)
Specifications & Features
Model : GHT112 -121
1.Prism Offset
0mm, suitable for Swiss-style Circular Prisms,Surveying Prisms and Monitoring Prism Reflectors

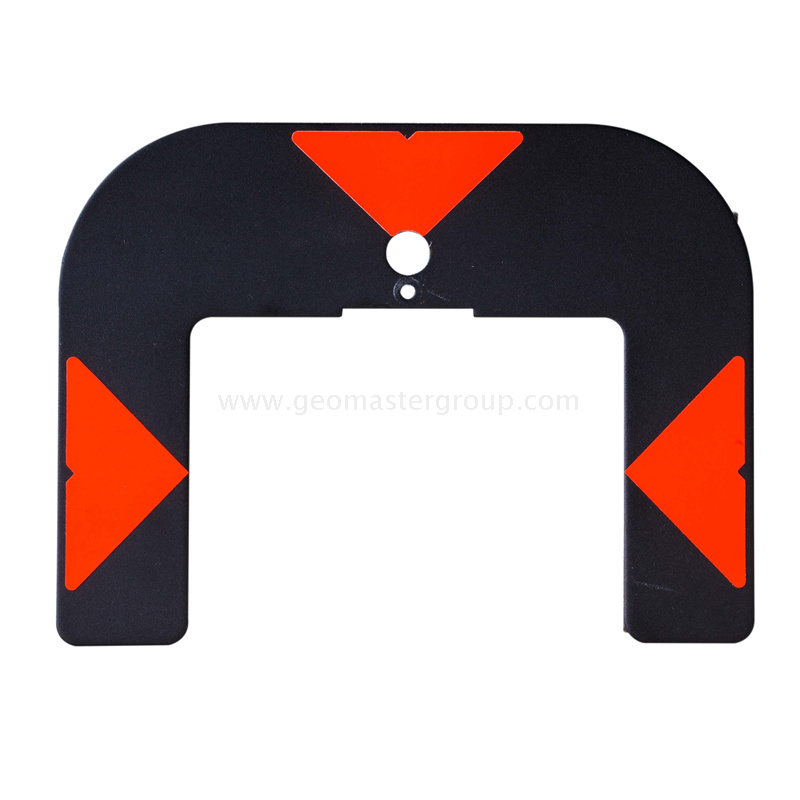

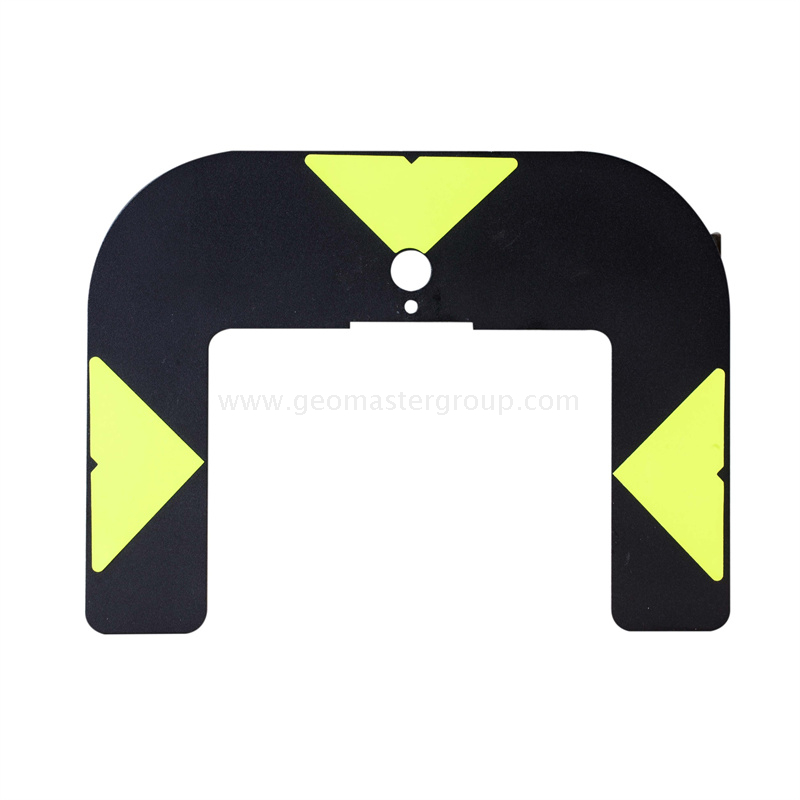

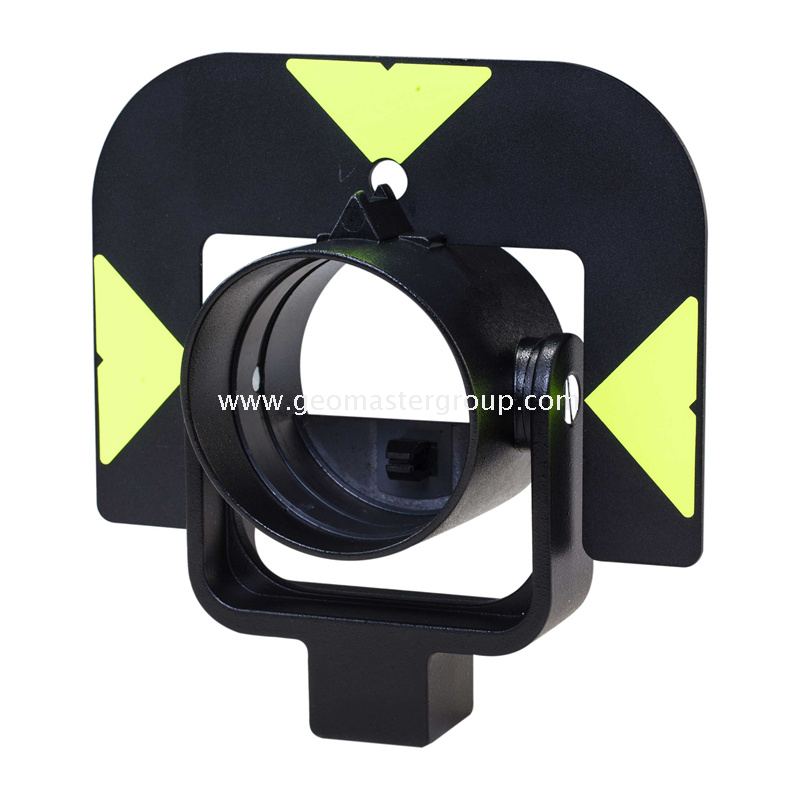

2.Tilting Steel Prism Holder & Target
1)Made of cast Aluminum
2)Central Height (Height Offset): 86mm
3)Target Dimensions: 160mm x 120mm
4)With quick-release Press Button
5)Highly visible Retro Tapes on the both Sides of Target
3.Compatible with
1)all Geomaster Swiss-style snap-on Circular Prism Reflectors
2)all Geomaster Swiss-style Geo-bases and Geo-adapters
3)all Geomaster Swiss-style Surveying Poles (Prism Poles,GPS Poles,Laser Poles)
4)all Geomaster Swiss-style Fixed or Rotating Prism Carriers
5)all Swiss-style Surveying Instruments
4.NW: 390-400G (Excluindo o Prism Reflector; Holder: 335-340G; Target: 55-60G)
5. PACODENTE NO SACO DO PRISM DURÍVEL DURO DURO E CASE PAB-5 ou PAB-6
NOTA: Qualquer atualização estaria sujeita a alteração sem aviso prévio! (GPR113)
